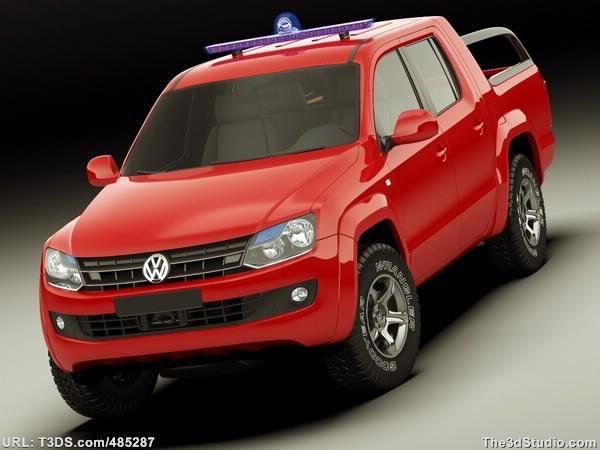

Volkswagen Amarok

 Final Project

I planning to do this for my final project of Catia V5.So this the proposal that I've submit to my lecturer.I estimate this project will take about a week and three days to finish it depend on my work time.This individual project that I've chosen itself.I took risk to do it.Hope all the progress will go smoothly.

                                                                          Volkswagen Amarok

Demiveemon Final

     This is my final picture on cartoon  using IMA.Actually the exploration on making this is not an easy as ABC but the determination.Left the class for a week it not an excuse not to finish it.It's make me to do it in very hard version because I need to catch up the step on IMA workbench .

             After several days,the cartoon is finish.I'm very glad to finish it because I didn't sure I can reach at this level.Advice from lecturer make me felt outstanding even I didn't enter his class.

               Anyway this my last result of the cartoon.

IMA Project

The task to do it very hard to me.I left the first and second lesson about it.So the result is just like this.Anyhow to make it  very tough but it fun and also interesting.The cartoon that I've choose is Demiveemon.So I need to continue this project.Wish me luck.

Advanced CAD

First Project

Backrest

1.First time on using a software of Catia V5 is very hard.The interface is just like Solidwork.However to make sure the project and task need to be done after this,I need to familiarize with all toolbar,command,gadget,workbench and so on.So for the first project I've been task to do a bench using this software.

Upholstery

2.The basic is simple,first we need to create a part of bench.Start with the backrest first and the we continue with the upholstery.The process of backrest not complicated at all.I do it without maintaining the aspect of dimension.In the other hand,I do it first than consider the dimension.So in the other word,I create without using proper design.

Attaching the backrest

3.After finish up the backrest and upholstery,I attach the backrest and upholstery together.In this project it consists of 5 pieces of backrest,1 piece of upholstery and 1 piece of base.

Attaching the backrest at upholstery

4.On attaching it,we  need to enter the workbench on assembly.So it can't be done on the part workbench.

Base

5.After that,we doing the base of the bench.The design is quite rare because I do it for the first time without focusing on design aspect 100%.

Complete part

6.Lastly assembly process totally done.Attaching base with backrest and upholstery in the assembly workbench.

Rendering with new scene

7.Then we enter into the new scene to render the project using actual material.The scene also need to be real in order to show the actual project in the reality world.
